Do Language Models Use Their Depth Efficiently?#
This notebook uses NDIF to reproduce the main results from the paper Do Language Models Use Their Depth Efficiently? (Csordás et al.). This paper investigates how LLMs create their output across layers, finding that layers in the first half contribute significantly more than the second half. The authors found that deeper LLMs appear to use their additional layers for fine-grained adjustments to the residual stream rather than learning qualitatively new types of computation, potentially explaining why scaling transformer depth can have diminishing returns.
Here, we show how to measure each layer’s relative contributions (Fig. 2a), cosine similarities to the residual (Fig. 2b), maximum effect on future computations (Fig. 3), refinement effects using LogitLens (Fig 4), residual erasure intervention (Fig 6b), and integrated gradients (Fig 6a).
Setup#
Import libraries, load models, create helper functions
[1]:
from IPython.display import clear_output
try:
import google.colab
is_colab = True
except ImportError:
is_colab = False
if is_colab:
!pip install --no-deps nnsight
!pip install msgspec python-socketio[client]
!pip install -U datasets
clear_output()
[2]:
import os
import nnsight
from nnsight import LanguageModel
from nnsight import CONFIG
import torch
import torch.nn.functional as F
import random
import datasets
from typing import Optional, List, Dict, Tuple
from matplotlib import pyplot as plt
from mpl_toolkits.axes_grid1 import make_axes_locatable
As we are using NNsight, we have the option to access models remotely with NDIF. If you’d like to use NDIF to run this notebook, set REMOTE = True. You can set up remote access with NDIF using this tutorial: https://nnsight.net/notebooks/tutorials/start_remote_access/
[3]:
# Model configuration. For loading a model not supported by NDIF, set REMOTE to False.
REMOTE = True # set to True to use the NDIF hosted model
model_name = "meta-llama/Meta-Llama-3.1-8B"
N_EXAMPLES = 2 # Number of examples for the future effect tests.
if REMOTE:
if is_colab:
# include your HuggingFace Token and NNsight API key on Colab secrets
from google.colab import userdata
NDIF_API = userdata.get('NDIF_API')
HF_TOKEN = userdata.get('HF_TOKEN')
CONFIG.set_default_api_key(NDIF_API)
!huggingface-cli login -token HF_TOKEN
else:
nnsight.CONFIG.API.APIKEY = os.environ["NDIF_API"]
clear_output()
[4]:
if not REMOTE:
from transformers import BitsAndBytesConfig
bnb_config = BitsAndBytesConfig(
load_in_8bit=True,
bnb_8bit_compute_dtype=torch.bfloat16
)
llm = LanguageModel(model_name, device_map="auto", quantization_config=bnb_config, torch_dtype=torch.bfloat16)
else:
llm = LanguageModel(model_name)
llm.eval()
print(llm)
LlamaForCausalLM(
(model): LlamaModel(
(embed_tokens): Embedding(128256, 4096)
(layers): ModuleList(
(0-31): 32 x LlamaDecoderLayer(
(self_attn): LlamaAttention(
(q_proj): Linear(in_features=4096, out_features=4096, bias=False)
(k_proj): Linear(in_features=4096, out_features=1024, bias=False)
(v_proj): Linear(in_features=4096, out_features=1024, bias=False)
(o_proj): Linear(in_features=4096, out_features=4096, bias=False)
)
(mlp): LlamaMLP(
(gate_proj): Linear(in_features=4096, out_features=14336, bias=False)
(up_proj): Linear(in_features=4096, out_features=14336, bias=False)
(down_proj): Linear(in_features=14336, out_features=4096, bias=False)
(act_fn): SiLU()
)
(input_layernorm): LlamaRMSNorm((4096,), eps=1e-05)
(post_attention_layernorm): LlamaRMSNorm((4096,), eps=1e-05)
)
)
(norm): LlamaRMSNorm((4096,), eps=1e-05)
(rotary_emb): LlamaRotaryEmbedding()
)
(lm_head): Linear(in_features=4096, out_features=128256, bias=False)
(generator): Generator(
(streamer): Streamer()
)
)
[5]:
# Dataset for the GSM8K benchmark.
class GSM8K:
def __init__(self):
self.dataset = datasets.load_dataset("openai/gsm8k", "main", split="test")
@staticmethod
def format_example(example: Dict[str, str]) -> str:
# Format GSM8K example according to the LM evaluation harness.
question = example["question"]
answer = example["answer"].split("####")
assert len(answer) == 2
res = f"Given the following problem, reason and give a final answer to the problem.\nProblem: {question}\nYour response should end with \"The final answer is [answer]\" where [answer] is the response to the problem.\n"
return f"{res}\n{answer[0]}The final answer is {answer[1].strip()}"
def __iter__(self):
for example in self.dataset:
yield self.format_example(example)
[6]:
def tokenize(llm: LanguageModel, prompt: str, add_special_tokens: bool = True) -> List[str]:
# Tokenize a prompt and return the tokens as a list of strings.
tokens = llm.tokenizer(prompt, add_special_tokens=add_special_tokens)["input_ids"]
token_str = [s.replace("Ġ","_") for s in llm.tokenizer.convert_ids_to_tokens(tokens)]
return token_str
Relative contributions and cosine similarities#
We start by analyzing the general behavior of the residual stream. We measure two quantities: the relative contribution to the residual and the cosine similarity of the layer’s/sublayer’s contribution to the residual. We measure this independently for the MLP, attention, and both of them simultaneously.
This reproduces Fig. 2 from the paper.
[7]:
def analyze_norms(llm, prompts):
with torch.no_grad():
with llm.session(remote=REMOTE) as session:
att_cos_all = 0
mlp_cos_all = 0
layer_cos_all = 0
mean_relative_contribution_att = 0
mean_relative_contribution_mlp = 0
mean_relative_contribution_layer = 0
cnt = 0
for i, prompt in enumerate(prompts):
with llm.trace(prompt):
att_cos = []
mlp_cos = []
layer_cos = []
relative_contribution_att = []
relative_contribution_mlp = []
relative_contribution_layer = []
for i, layer in enumerate(llm.model.layers):
# Relative contribution of the attention to the residual stream.
layer_inputs = layer.inputs[0][0]
self_attn_output = layer.self_attn.output[0]
relative_contribution_att.append(
(self_attn_output.detach().norm(dim=-1).float() / layer_inputs.detach().norm(dim=-1).float().clamp(min=1e-6)).sum(1).cpu()
)
# Relative contribution of the MLP to the residual stream. The corresponding
# accumulation point is after the self-attention.
mlp_input = (self_attn_output + layer_inputs).detach()
mlp_output = layer.mlp.output
relative_contribution_mlp.append(
(mlp_output.detach().norm(dim=-1).float() / mlp_input.norm(dim=-1).clamp(min=1e-6).float()).sum(1).cpu()
)
# Relative contribution of the layer to the residual stream.
layer_output = layer.output[0]
layer_diff = (layer_output - layer_inputs).detach()
relative_contribution_layer.append(
(layer_diff.norm(dim=-1).float() / layer_inputs.detach().norm(dim=-1).float().clamp(min=1e-6)).sum(1).cpu()
)
# Cosine similarities between the same points as the relative contributions above.
att_cos.append(F.cosine_similarity(self_attn_output.detach(), layer_inputs.detach(), dim=-1).sum(1).cpu().float())
mlp_cos.append(F.cosine_similarity(mlp_output.detach(), mlp_input, dim=-1).sum(1).cpu().float())
layer_cos.append(F.cosine_similarity(layer_diff, layer_inputs.detach(), dim=-1).sum(1).cpu().float())
if i == 0:
cnt += layer_output.shape[1]
mean_relative_contribution_att += torch.cat(relative_contribution_att, dim=0)
mean_relative_contribution_mlp += torch.cat(relative_contribution_mlp, dim=0)
mean_relative_contribution_layer += torch.cat(relative_contribution_layer, dim=0)
att_cos_all += torch.cat(att_cos, dim=0)
mlp_cos_all += torch.cat(mlp_cos, dim=0)
layer_cos_all += torch.cat(layer_cos, dim=0)
att_cos_all = (att_cos_all / cnt).save()
mlp_cos_all = (mlp_cos_all / cnt).save()
layer_cos_all = (layer_cos_all / cnt).save()
mean_relative_contribution_att = (mean_relative_contribution_att / cnt).save()
mean_relative_contribution_mlp = (mean_relative_contribution_mlp / cnt).save()
mean_relative_contribution_layer = (mean_relative_contribution_layer / cnt).save()
return (mean_relative_contribution_att, mean_relative_contribution_mlp, mean_relative_contribution_layer,
att_cos_all, mlp_cos_all, layer_cos_all)
[8]:
prompts = []
for i, prompt in enumerate(GSM8K()):
if i >= N_EXAMPLES:
break
prompts.append(prompt)
rc_att, rc_mlp, rc_layer, att_cos, mlp_cos, layer_cos = analyze_norms(llm, prompts)
2025-07-03 16:39:17,131 c12991ff-bef0-4568-b171-8daa5c1124c9 - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:c12991ff-bef0-4568-b171-8daa5c1124c9 - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:39:17,299 c12991ff-bef0-4568-b171-8daa5c1124c9 - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:c12991ff-bef0-4568-b171-8daa5c1124c9 - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:39:18,015 c12991ff-bef0-4568-b171-8daa5c1124c9 - RUNNING: Your job has started running.
INFO:nnsight_remote:c12991ff-bef0-4568-b171-8daa5c1124c9 - RUNNING: Your job has started running.
2025-07-03 16:39:18,472 c12991ff-bef0-4568-b171-8daa5c1124c9 - COMPLETED: Your job has been completed.
INFO:nnsight_remote:c12991ff-bef0-4568-b171-8daa5c1124c9 - COMPLETED: Your job has been completed.
[9]:
def sort_zorder(bars):
for group in zip(*[container for container in bars]):
# 'group' is a tuple of bar objects at one x position from different groups.
z = len(group)
# Sort the bars by height (lowest first).
for bar in sorted(group, key=lambda b: abs(b.get_height())):
bar.set_zorder(z)
z -= 1
[10]:
def plot_residual_stats(att, mlp, layer):
plt.figure(figsize=(6,3))
bars = []
bars.append(plt.bar([x for x in range(len(llm.model.layers))], att.float().cpu().numpy(), label="Attention", width=1.1))
bars.append(plt.bar([x for x in range(len(llm.model.layers))], mlp.float().cpu().numpy(), label="MLP", width=1.1))
bars.append(plt.bar([x for x in range(len(llm.model.layers))], layer.float().cpu().numpy(), label="Attention + MLP", width=1.1))
plt.legend()
sort_zorder(bars)
plt.xlim(-0.5, len(llm.model.layers)-0.5)
plt.xlabel("Layer index ($l$)")
[11]:
plot_residual_stats(rc_att, rc_mlp, rc_layer)
plt.ylim(0, 1.5)
plt.ylabel("Mean Relative Contribution")
[11]:
Text(0, 0.5, 'Mean Relative Contribution')

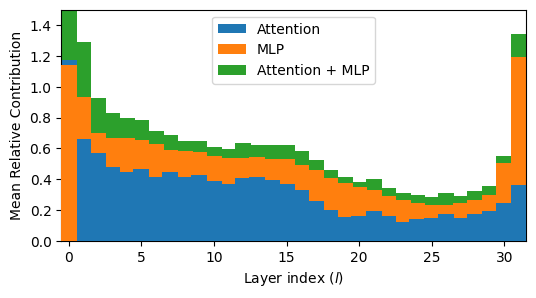

We see reduced contribution in the second half of the layers.
[12]:

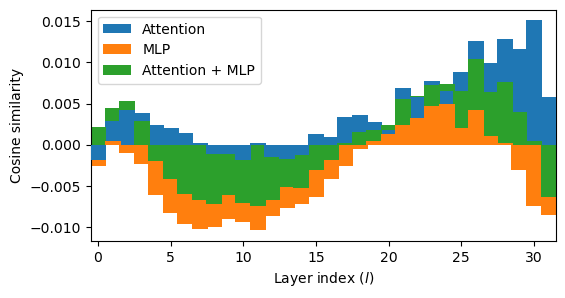

plot_residual_stats(att_cos, mlp_cos, layer_cos)
plt.ylabel("Cosine similarity")
[12]:
Text(0, 0.5, 'Cosine similarity')

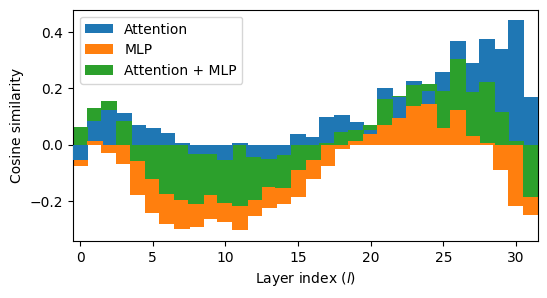

Negative cosine similarities indicate erasing information from the residual, while the positive ones indicate strengthening. Writing new features orthogonal to the current content does not show up in these plots. This intuition does not take into account features in superposition.

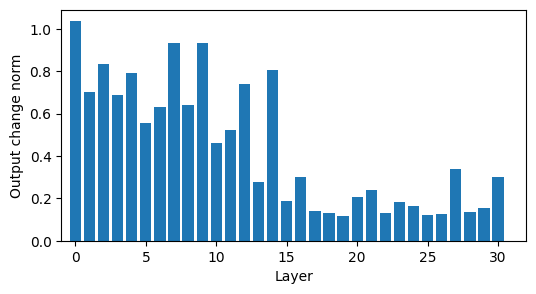

Measuring the effect of the layer on future computations#
Here, we measure how the contribution of future layers to the residual change when a previous layer is skipped. The future layer’s contribution is the sum of the output of the attention and MLP layers for pre-layernorm transformers. The relative change is defined by the L2 norm of the change normalized by the L2 norm of the original contribution. This will give us a pairwise metric between layers, showing how much they depend on each other.
Each layer is skipped, and its effect is measured over all future layers. Two setups are possible:

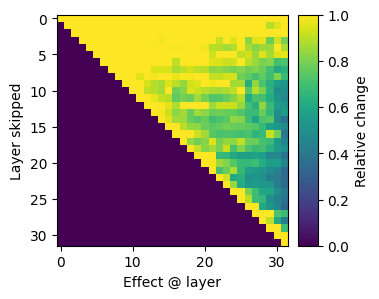

Effect on all tokens, including the current

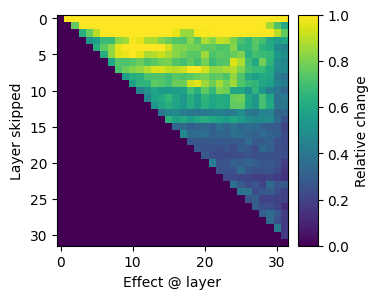

Skipping the layer until position t, and measuring the effect on positions t’ > t. This highlights if the skipped layer takes part in a mechanism composed of multiple tokens, such as induction heads.
[13]:
def merge_io(intervened: torch.Tensor, orig: torch.Tensor, t: Optional[int] = None, no_skip_front: int = 1) -> torch.Tensor:
# Merge intervened and original inputs. If t is not None, keep the intervened input until t, otherwise keep it everywhere.
# It does not intervene on the first no_skip_front tokens.
outs = [orig[:, :no_skip_front]]
if t is not None:
outs.append(intervened[:, no_skip_front:t].to(orig.device))
outs.append(orig[:, t:])
else:
outs.append(intervened[:, no_skip_front:].to(orig.device))
return torch.cat(outs, dim=1)
def get_future(data: torch.Tensor, t: Optional[int]) -> torch.Tensor:
# Get future tokens from position t onwards. If t is None, return all tokens.
if t is not None:
return data[:, t:]
else:
return data
def test_effect(llm: LanguageModel, prompt: str, positions: List[Optional[int]], no_skip_front: int = 1) -> tuple[torch.Tensor, torch.Tensor]:
# Test effect of skipping a layer on all future layers and the output probabilities.
# If multiple positions are provided, the maximum is taken over all positions.
# If position is None, it measures the effect on all tokens, not just the future.
# Note: Detach must be explicitly called on each saved tensor, ortherwise the graph will be kept and it will run out of memory.
# This is despite being wrapped in torch.no_grad().
# The idea is to run all interventions in a single session to avoid downloading intermediate activations,
# which can be very large. The output of matmul in bfloat16 is sensitive to the kernel used by cuBLAS,
# which changes with the batch size. So run everything in a single batch.
with torch.no_grad():
with llm.session(remote=REMOTE) as session:
dall = torch.zeros(1)
dall_out = torch.zeros(1)
residual_log = []
# Run the model to get the original residuals and output probabilities.
with llm.trace(prompt) as tracer:
for i, layer in enumerate(llm.model.layers):
if i == 0:
residual_log.clear()
residual_log.append(layer.output[0].detach().cpu().float() - layer.inputs[0][0].detach().cpu().float())
residual_log = torch.cat(residual_log, dim=0)
outputs = llm.output.logits.detach().float().softmax(dim=-1).cpu()
# Do intervention on each position.
for t in positions:
diffs = []
out_diffs = []
# Do intervention on each layer.
for lskip in range(len(llm.model.layers)):
with llm.trace(prompt) as tracer:
new_logs = []
# Log all the layer outputs.
for i, layer in enumerate(llm.model.layers):
layer_inputs = layer.inputs[0][0]
# skip the layer
if i == lskip:
layer_output = layer.output[0]
layer.output = (merge_io(layer_inputs, layer_output, t, no_skip_front), layer.output[1:])
new_logs.append((layer.output[0].detach().cpu().float() - layer_inputs.detach().cpu().float()))
new_logs = torch.cat(new_logs, dim=0).float()
# Measure the relative difference of the residuals on the future tokens
relative_diffs = (get_future(residual_log, t) - get_future(new_logs, t)).norm(dim=-1) / get_future(residual_log, t).norm(dim=-1).clamp(min=1e-6)
# Take the max realtive difference over the sequence lenght
diffs.append(relative_diffs.max(dim=-1).values)
# Measure the max relative difference of the output probabilities on the future tokens
out_diffs.append((get_future(llm.output.logits.detach(), t).float().softmax(dim=-1).cpu() - get_future(outputs, t)).norm(dim=-1).max(dim=-1).values)
# Concatenate effects over all layers.
dall = torch.max(dall, torch.stack(diffs, dim=0))
dall_out = torch.max(dall_out, torch.stack(out_diffs, dim=0))
dall = dall.save()
dall_out = dall_out.save()
return dall, dall_out
[16]:
def plot_layer_diffs(dall: torch.Tensor) -> plt.Figure:
fig, ax = plt.subplots(figsize=(10,3))
im = ax.imshow(dall.float().cpu().numpy(), vmin=0, vmax=1, interpolation="nearest")
plt.ylabel("Layer skipped")
plt.xlabel("Effect @ layer")
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size=0.2, pad=0.1)
cbar = fig.colorbar(im, cax=cax, label='Relative change')
return fig
def plot_logit_diffs(dall: torch.Tensor) -> plt.Figure:
fig = plt.figure(figsize=(6,3))
dall = dall.squeeze()
plt.bar(list(range(dall.shape[0])), dall)
plt.xlim(-1, dall.shape[0])
plt.xlabel("Layer")
plt.ylabel("Output change norm")
return fig
[17]:
def plot_effects(llm: LanguageModel, n_examples: int, test_fn):
random.seed(123)
max_future_layer = torch.zeros([1])
max_future_out = torch.zeros([1])
for idx, prompt in enumerate(GSM8K()):
diff_now, diff_out = test_fn(llm, prompt)
max_future_layer = torch.max(max_future_layer, diff_now)
max_future_out = torch.max(max_future_out, diff_out)
if idx == n_examples - 1:
break
plot_layer_diffs(max_future_layer)
plot_logit_diffs(max_future_out)
[18]:
def test_future_max_effect(llm: LanguageModel, prompt: str, N_CHUNKS: int = 4):
# Sample N_CHUNKS positions to intervene on and calculate the maximum effect on this single prompt.
tokens = tokenize(llm, prompt)
positions = list(range(8, len(tokens)-4, 8))
random.shuffle(positions)
positions = positions[:N_CHUNKS]
return test_effect(llm, prompt, positions)
plot_effects(llm, N_EXAMPLES, test_future_max_effect)
2025-07-03 16:43:42,476 4e99c4c1-cb86-4d00-a3e6-1781256d9263 - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:4e99c4c1-cb86-4d00-a3e6-1781256d9263 - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:43:42,644 4e99c4c1-cb86-4d00-a3e6-1781256d9263 - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:4e99c4c1-cb86-4d00-a3e6-1781256d9263 - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:43:49,496 4e99c4c1-cb86-4d00-a3e6-1781256d9263 - RUNNING: Your job has started running.
INFO:nnsight_remote:4e99c4c1-cb86-4d00-a3e6-1781256d9263 - RUNNING: Your job has started running.
2025-07-03 16:44:07,724 4e99c4c1-cb86-4d00-a3e6-1781256d9263 - COMPLETED: Your job has been completed.
INFO:nnsight_remote:4e99c4c1-cb86-4d00-a3e6-1781256d9263 - COMPLETED: Your job has been completed.
2025-07-03 16:45:10,225 8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:45:10,455 8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:45:17,354 8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - RUNNING: Your job has started running.
INFO:nnsight_remote:8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - RUNNING: Your job has started running.
2025-07-03 16:45:32,063 8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - COMPLETED: Your job has been completed.
INFO:nnsight_remote:8ab21f05-2bdc-4c20-bdec-5704d94a35d3 - COMPLETED: Your job has been completed.

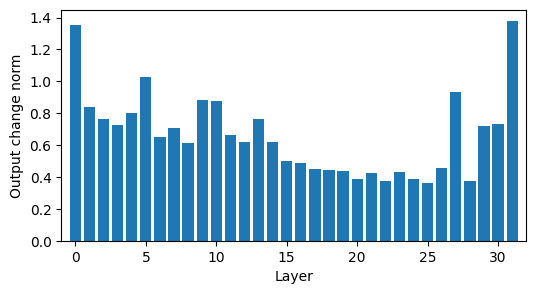

We can see that the second half of the layers does not have a significant effect on the computations in the future tokens. This indicates that they are not constructing reusable features that can be used compositionally in future computations.
[19]:
def test_all_max_effect(llm: LanguageModel, prompt: str, N_CHUNKS: int = 4):
return test_effect(llm, prompt, [None])
plot_effects(llm, N_EXAMPLES, test_all_max_effect)
2025-07-03 16:47:13,758 6eee1203-93d8-4417-b2d3-48ab3f593438 - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:6eee1203-93d8-4417-b2d3-48ab3f593438 - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:47:13,925 6eee1203-93d8-4417-b2d3-48ab3f593438 - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:6eee1203-93d8-4417-b2d3-48ab3f593438 - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:47:19,674 6eee1203-93d8-4417-b2d3-48ab3f593438 - RUNNING: Your job has started running.
INFO:nnsight_remote:6eee1203-93d8-4417-b2d3-48ab3f593438 - RUNNING: Your job has started running.
2025-07-03 16:47:25,286 6eee1203-93d8-4417-b2d3-48ab3f593438 - COMPLETED: Your job has been completed.
INFO:nnsight_remote:6eee1203-93d8-4417-b2d3-48ab3f593438 - COMPLETED: Your job has been completed.
2025-07-03 16:47:39,379 7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:47:39,546 7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:47:41,355 7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - RUNNING: Your job has started running.
INFO:nnsight_remote:7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - RUNNING: Your job has started running.
2025-07-03 16:47:45,904 7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - COMPLETED: Your job has been completed.
INFO:nnsight_remote:7ed9e7ca-8f70-4ae1-ad93-9f56c971449d - COMPLETED: Your job has been completed.
The second half of the layers remain important for the current predictions. However, they seem to have a reduced effect on each other. This indicates that they are independently refining the final predictions.
Logit Lens#
Here, we use logit lens to show that the second half of the layers is responsible for refining the final predictions for each layer, reproducing Fig 4. in the paper.
[20]:
def run_logitlens(llm, prompts, K=5):
with torch.no_grad():
with llm.session(remote=REMOTE) as session:
res_kl_divs = 0
res_overlaps = 0
cnt = 0
# Iterate over all prompts.
for prompt in prompts:
kl_divs = []
overlaps = []
layer_logs = []
# Iterate over all layers first and get the final logits.
with llm.trace(prompt):
for l in range(len(llm.model.layers)):
# Run the LM head and final layernorm on each layer's output
tap = llm.model.layers[l].inputs[0][0]
layer_logs.append(llm.lm_head(llm.model.norm(tap)).detach().float())
out_logits = llm.output.logits
# Compute the final logprobs and top-K predictions
lout = out_logits.float().log_softmax(-1)
otopl = lout.topk(K, dim=-1).indices
# 1 for each token in the top-K, 0 for others.
real_oh = F.one_hot(otopl, llm.model.embed_tokens.weight.shape[0]).sum(-2)
for l in range(len(llm.model.layers)):
# Compute the KL divergence between the final output and the logitlens outputs.
llayer = layer_logs[l].log_softmax(-1)
kl_divs.append((llayer.exp() * (llayer - lout)).sum(-1).sum().detach())
# Also compute the top-K predictions for each layer.
itopl = llayer.topk(K, dim=-1).indices
# Compute the top-K mask for the logitlens predictions
logitlens_oh = F.one_hot(itopl.to(real_oh.device), llm.model.embed_tokens.weight.shape[0]).sum(-2)
# Compute overlap
overlaps.append((logitlens_oh.unsqueeze(-2).float() @ real_oh.unsqueeze(-1).float() / K).sum())
res_kl_divs = res_kl_divs + torch.stack(kl_divs, dim=0)
res_overlaps = res_overlaps + torch.stack(overlaps, dim=0)
cnt += out_logits.shape[1]
res_kl_divs = res_kl_divs / cnt
res_overlaps = res_overlaps / cnt
res_kl_divs = res_kl_divs.save()
res_overlaps = res_overlaps.save()
return res_kl_divs, res_overlaps
[21]:
res_kl_divs, res_overlaps = run_logitlens(llm, prompts)
2025-07-03 16:47:57,276 ffaaaf3c-00df-4210-a412-7e95820c089c - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:ffaaaf3c-00df-4210-a412-7e95820c089c - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:47:57,443 ffaaaf3c-00df-4210-a412-7e95820c089c - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:ffaaaf3c-00df-4210-a412-7e95820c089c - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:47:57,897 ffaaaf3c-00df-4210-a412-7e95820c089c - RUNNING: Your job has started running.
INFO:nnsight_remote:ffaaaf3c-00df-4210-a412-7e95820c089c - RUNNING: Your job has started running.
2025-07-03 16:47:58,694 ffaaaf3c-00df-4210-a412-7e95820c089c - COMPLETED: Your job has been completed.
INFO:nnsight_remote:ffaaaf3c-00df-4210-a412-7e95820c089c - COMPLETED: Your job has been completed.
[22]:

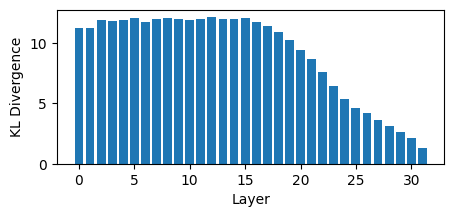

plt.figure(figsize=(5,2))
plt.bar(range(len(llm.model.layers)), res_kl_divs.cpu().numpy())
plt.ylabel("KL Divergence")
plt.xlabel("Layer")

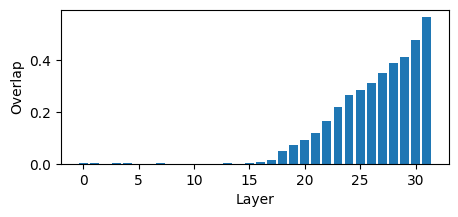

plt.figure(figsize=(5,2))
plt.bar(range(len(llm.model.layers)), res_overlaps.cpu().numpy())
plt.ylabel("Overlap")
plt.xlabel("Layer")
[22]:
Text(0.5, 0, 'Layer')
This shows that at the same point where the contribution to the future computations drops, the KL divergence to the output also drops, and the overlap with the final predictions starts to grow rapidly, confirming our hypothesis that the second half of the layers are refining the output probability distributions.
Residual erasure experiment#
Measure the layer in which each token is processed. The hypothesis is that if the computation is compositional, earlier operations should finish in a lower layer, such that the later operations can take subresults as their inputs. We should see a left-to-right tiled plot here if the model is compositional.
To measure this, we compute an “uninformative” residual for each layer. This is an average of 10 GSM8K examples. Then, for each token and each layer, we replace the residual h[token, layer] with the uninformative one and check its effect on the answer tokens.
[23]:
def measure_token_skip(llm: LanguageModel, q: str, a: str, prompts: List[str]) -> Tuple[torch.Tensor, List[str]]:
# Replace each position in the residual stream (each layer + each token) with an uninformative
# value and measure the effect on the answer.
# Returns the effect map of shape (layers, tokens) and the the string token IDs.
atokens = tokenize(llm, a, add_special_tokens=False)
alen = len(atokens)
prompt = q + a
tokens = tokenize(llm, prompt)
with torch.no_grad():
with llm.session(remote=REMOTE) as session:
# Collect uninformative residuals from 10 GSM8K examples
baseline_residuals = {
i: 0 for i in range(len(llm.model.layers)+1)
}
count = 0
for i, nprompt in enumerate(prompts):
with llm.trace(nprompt):
for l in range(len(llm.model.layers)):
if l == 0:
# Special handling for the token embedding from before the first layer
baseline_residuals[0] += llm.model.layers[0].inputs[0][0].detach().sum(dim=1).cpu().float()
baseline_residuals[l+1] += llm.model.layers[l].output[0].detach().sum(dim=1).cpu().float()
count += llm.model.layers[0].output[0].shape[1]
baseline_residuals = {k: (v / count) for k, v in baseline_residuals.items()}
# Measure the output probability distribution without intervention
with llm.trace(prompt):
outs = llm.output.logits[:, -(alen+1):-1].detach().softmax(dim=-1)
ls = []
for l in range(len(llm.model.layers) + 1):
ts = []
for t in range(len(tokens)):
with llm.trace(prompt):
if l == 0:
# Intervene on the embeddings
layer = llm.model.layers[0]
layer.inputs[0][0][:, t] = baseline_residuals[l][:, None]
else:
# Intervene on the layer output
layer = llm.model.layers[l-1]
layer.output[0][:, t] = baseline_residuals[l][:, None]
# Measure the max effect on the output probability of any answer token
ts.append((outs - llm.output.logits[:, -(alen+1):-1].detach().softmax(dim=-1)).norm(dim=-1).max(dim=1).values.cpu())
# Concatenate the token effects (a row of the plot)
ls.append(torch.cat(ts, 0))
# Concatenate layers (columns of the plot)
result = torch.stack(ls, dim=0).save()
return result, tokens
[24]:
def plot_logit_effect(ls: torch.Tensor, tokens: List[str]) -> plt.Figure:
ls = ls[:, :-1]
tokens = tokens[:-1]
tokens = [t if t != "<|begin_of_text|>" else "BOS" for t in tokens]
fig, ax = plt.subplots(figsize=(5,5 * max(1, ls.shape[0] / 30)))
im = ax.imshow(ls.float().cpu().numpy())
plt.xticks(range(len(tokens)), tokens, rotation=45, ha='right',rotation_mode="anchor", fontsize=8)
ax.invert_yaxis()
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size=0.1, pad=0.1)
cbar = fig.colorbar(im, cax=cax, label='Probability Difference Norm')
return fig
[25]:
promtps_10 = []
for i, prompt in enumerate(GSM8K()):
if i >= 10:
break
promtps_10.append(prompt)
erasure_effect, tokens = measure_token_skip(llm, "5 + 7 + 5 + 3 + 1 + 7 = ", "28", promtps_10)
2025-07-03 16:48:24,094 3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:48:24,261 3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:48:26,448 3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - RUNNING: Your job has started running.
INFO:nnsight_remote:3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - RUNNING: Your job has started running.
2025-07-03 16:48:51,194 3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - COMPLETED: Your job has been completed.
INFO:nnsight_remote:3e7dc3c5-8f32-4486-9c61-419aa1e4db6f - COMPLETED: Your job has been completed.
[26]:

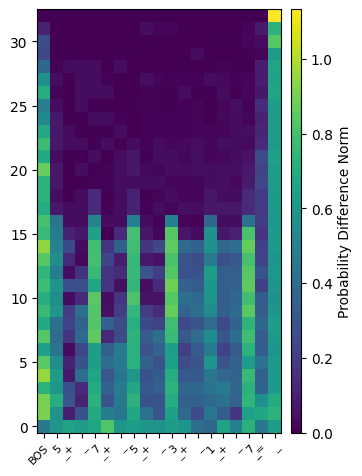

plot_logit_effect(erasure_effect, tokens)
None
We see that each token is important until the same point in the residual, indicating that no high-level composition is happening.
Integrated Gradients#
Integrated gradients can give a direct importance metric for any computation in the network. By measuring the importance of the residual stream for each token and layer separately, we can obtain a similar plot to the residual erasure experiments.

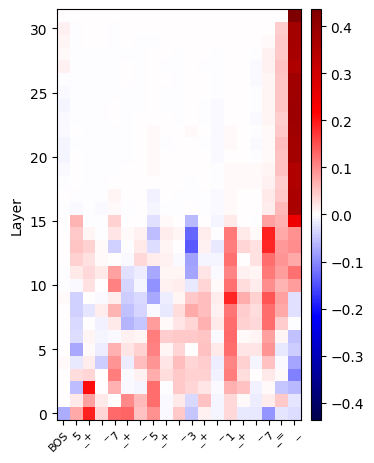

We will see that the two plots show the same picture: all tokens are important until halfway through the network.
[27]:
def get_igrads(llm, q: str, a: str):
N_STEPS = 256 # How many total integration steps to take
BLOCK_SIZE = 16 # Batch size for the integration steps
atok = tokenize(llm, a, add_special_tokens=False)
alen = len(atok)
prompt = q + a
alltok = tokenize(llm, prompt)
with llm.session(remote=REMOTE) as session:
igrads = []
for l in range(len(llm.model.layers)):
l_igrads = 0
for step_block in range(0, N_STEPS, BLOCK_SIZE):
with llm.trace(prompt) as tracer:
orig_output = llm.model.layers[l].output[0].clone().detach()
# Set the baseline to the mean activation
baseline = orig_output.mean(dim=1, keepdims=True)
# Create a bunch of interpolated activations between the original activation and the baseline
# This also creates a batch from the single example that we had before this layer.
r = torch.arange(start=step_block, end=min(step_block + BLOCK_SIZE, N_STEPS), device=baseline.device, dtype=baseline.dtype) / N_STEPS
target = orig_output * r[:, None, None] + baseline * (1-r[:, None, None])
# Overwrite the MLP output with the target
llm.model.layers[l].output = target,
llm.model.layers[l].output[0].requires_grad_()
# Get the probability of the ground truth tokens. The GT token is the input of the
# embedding layer.
oclasses = F.softmax(llm.output.logits[:, :-1], dim=-1)
tid = llm.model.embed_tokens.inputs[0][0][:, 1:]
tid = tid.repeat(oclasses.shape[0], 1)
oprobs = oclasses.gather(-1, tid.unsqueeze(-1))
# Sum grad * activation diff for all different steps
igrad = (llm.model.layers[l].output[0].grad * (orig_output - baseline)).detach().cpu().float().sum(0)
l_igrads = l_igrads + igrad
# Call backward. Should be done after the gardient hooks are set up, otherwise
# the grads will be empty.
oprobs[:, -alen:].sum().backward()
# Save the grads for this layer
igrads.append((l_igrads.sum(-1) / N_STEPS))
result = torch.stack(igrads, dim=0).save()
return result, alltok
[28]:
def plot_igrads(layer_attributions, tokens):
fig, ax = plt.subplots(figsize=[5, 5 * max(1, layer_attributions.shape[0] / 30)])
# Remove the BOS token. Make sure that the limits are symmetric because of the colormap.
r = layer_attributions[:, 1:].abs().max().item()
tokens = [t if t != "<|begin_of_text|>" else "BOS" for t in tokens]
im = ax.imshow(layer_attributions[:, :-1].float().cpu().numpy(), cmap="seismic", vmin=-r, vmax=r, interpolation="nearest")
plt.xticks(range(len(tokens)-1), tokens[:-1], rotation=45, ha='right',rotation_mode="anchor", fontsize=8)
plt.ylabel("Layer")
ax.invert_yaxis()
divider = make_axes_locatable(ax)
cax = divider.append_axes("right", size=0.1, pad=0.1)
cbar = fig.colorbar(im, cax=cax)
return fig
[29]:
igrads, tokens = get_igrads(llm, "5 + 7 + 5 + 3 + 1 + 7 = ", "28")
2025-07-03 16:49:46,243 3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - RECEIVED: Your job has been received and is waiting approval.
INFO:nnsight_remote:3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - RECEIVED: Your job has been received and is waiting approval.
2025-07-03 16:49:46,490 3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - APPROVED: Your job was approved and is waiting to be run.
INFO:nnsight_remote:3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - APPROVED: Your job was approved and is waiting to be run.
2025-07-03 16:49:49,775 3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - RUNNING: Your job has started running.
INFO:nnsight_remote:3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - RUNNING: Your job has started running.
2025-07-03 16:50:46,649 3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - COMPLETED: Your job has been completed.
INFO:nnsight_remote:3bfc792f-2749-4e8b-b2df-4f2415b0eb2f - COMPLETED: Your job has been completed.
[30]:
plot_igrads(igrads, tokens)
None
Now that you’ve completed this notebook, try testing a deeper model! If you’d like to use NDIF to remotely run these experiments, you can see NDIF-hosted models here: https://nnsight.net/status/
